Lower production costs due to automatic operation, high output and uniform quality
High specific blast performance: parts are always shot peened in the hot spot of the blast stream where the effect is best
High energy efficiency, high economy: blast wheels fully exploit the energy applied and transform it to blast effect
The well proven separation system always maintains the shot operating mixture within the desired nominal size
In the shot peening process, reliability is crucial. Each part will undergo a defined treatment. The blasting intensity can be controlled by determining the Almen value and coverage. Due to the fact that all parameters (throughput speed, blasting time, discharge speed, shot size and distribution) in RDS Shot Peening Systems are defined exactly, it is possible to adjust and examine the Almen intensity and coverage.

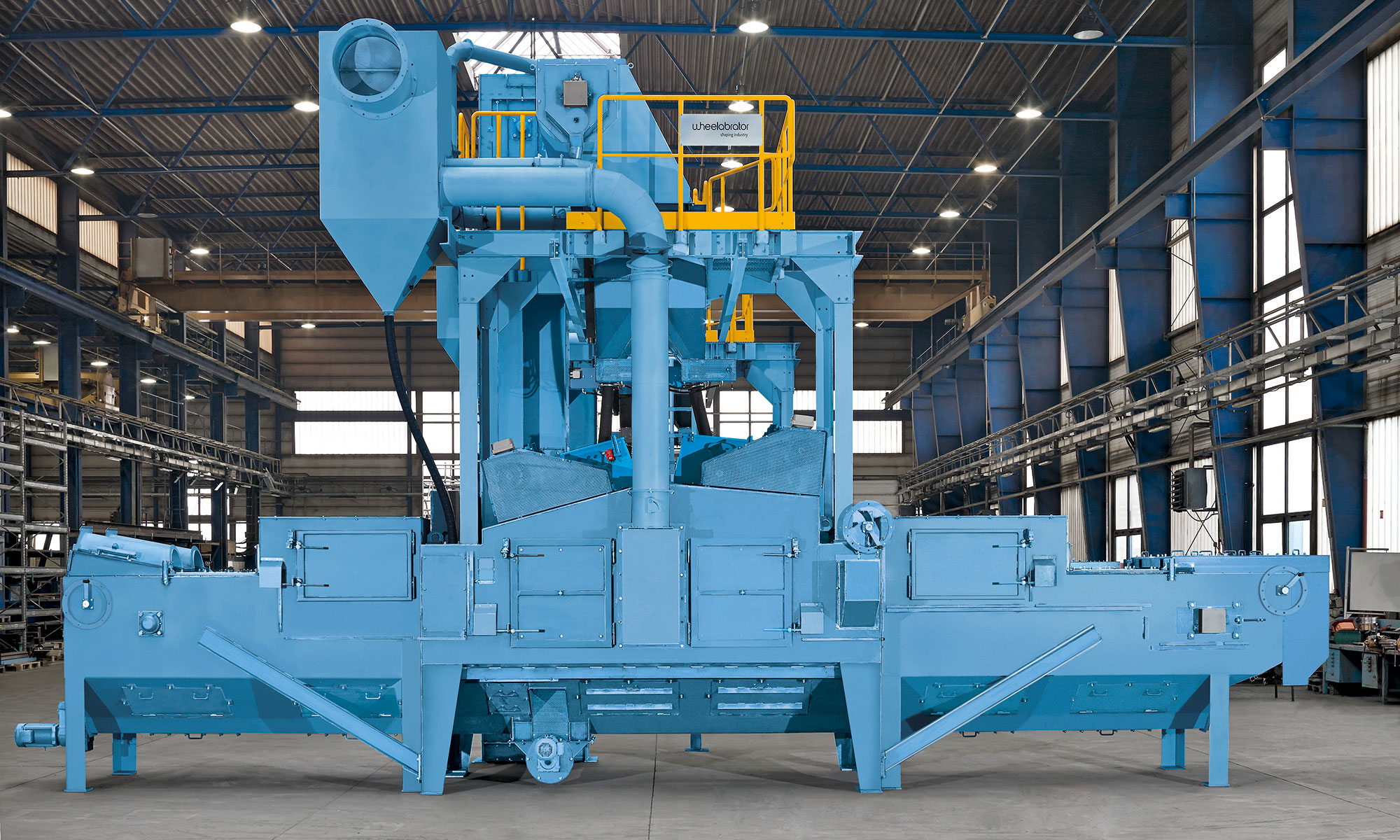

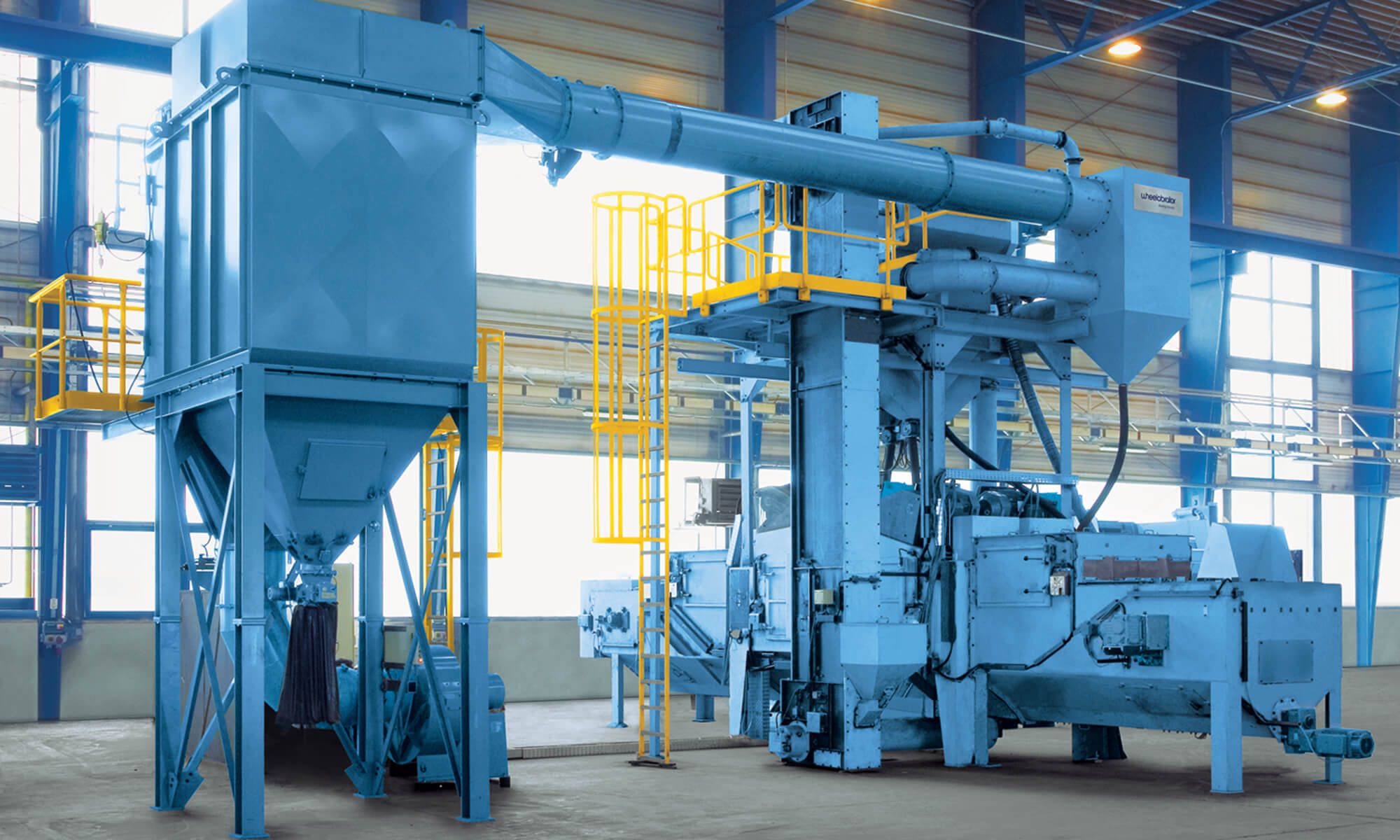

Wheelabrator RDS shot peening machines have a compact design and require only minimal space. They can be easily integrated into existing production lines. Once integrated into automatic procedures the installation only requires periodical inspection, and operating expenses can be reduced. The components within the blasting zone (housing, blast wheels) are made of high wear resistant material or protected against the abrasive effect of steel shot to extend operating life and reduce costs.

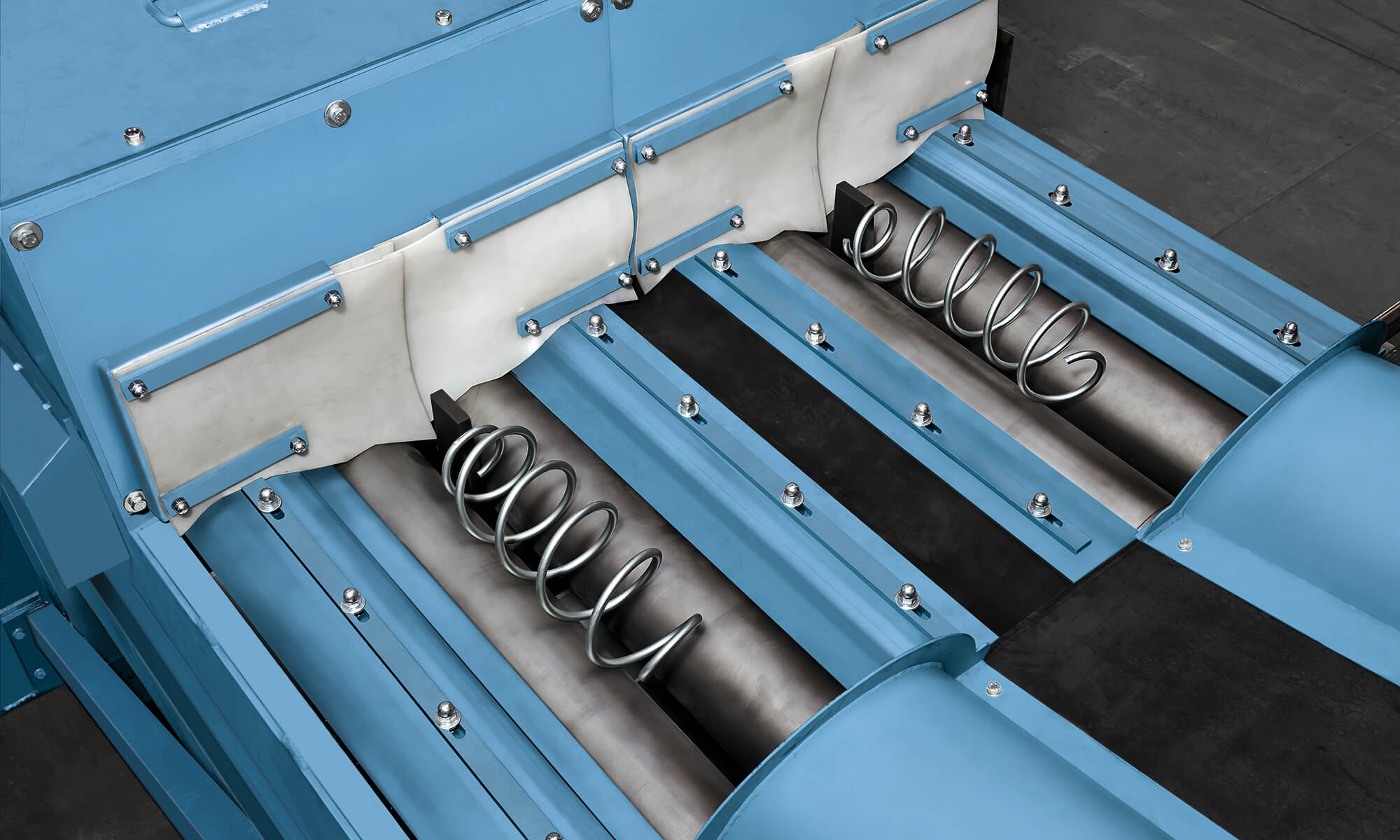

Simple but efficient sealing elements prevent stray abrasive. Specific design measures and close tolerances enable easy replacement of wear parts.
Maintenance operations can be executed conveniently and quickly thanks to integrated platforms and optimum accessibility via large maintenance doors.
The blast wheel is the heart of the blasting machine, as the choice of blast wheel determines the power output and the economics.
This machine is fitted with U70x500 Universal (indirect drive) shot blast wheels as standard. The Wheels are highly flexible, compact and have rotation in both directions. They provide perfect blast cleaning results and highly convenient servicing features.
The U Blast Wheels are high capacity blast wheels with maximum energy efficiency. Their rugged design means that maintenance is easy, and the special and highly wear resistant cast alloy liners ensure minimum wear and maximum service life of the blast wheel.
| Type |
RDS-2 |
RDS-4 |
| Exterior diameter of workpieces (mm) | 80-250 | 80-250 |
| Workpiece length max. (mm) | 600 | 600 |
| Number of blast wheels | 2 | 4 |
| Power per blast wheel (kW) | 45 | 45 |
| Blast wheel speed max. (rpm) | 2600 | 2600 |
We provide high quality, long lasting replacement parts. As the largest distributor of replacement parts in the industry we can deliver globally in the shortest timescales to prevent you having to have a large inventory stock on site or breaks in production.
