Pre-Blast
Roll Conveyor Blast Machine PBR

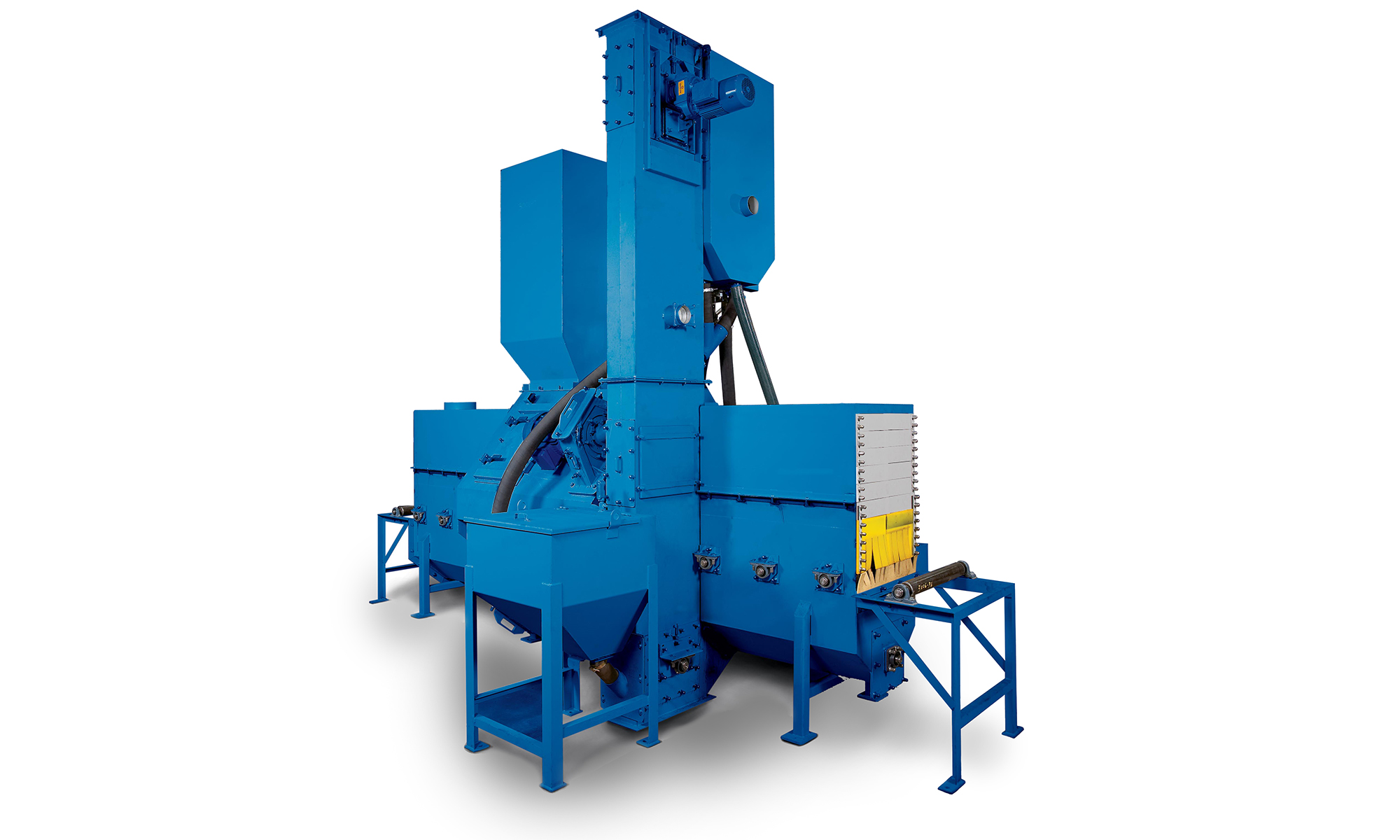

Pre-Blast Roll Conveyor Blast Machine

技术:

抛丸

应用:

清理, 去腐蚀, 除漆, 喷漆、压焊和电镀前表面处理, 除锈及去氧化皮, 表面粗糙度

行业:

中型/重型

工序:

嵌入式

优点

Fully automated system that reduces high labor costs

High productivity for cleaning a variety of structural shapes and fabrications

Can easily be integrated into existing production line

Leading technology, outstanding performance

Features

  • 18-inch x 24-inch cleaning envelope will clean a variety of structural shapes including square and rectangular tubing angles, H and I beams
  • Manganese Blast Compartment
  • Cast manganese rolls in blast zone
  • Four (4) direct drive blast wheels with cast
  • Manganese wheel housing
  • Low overall height for installation into low ceiling shops
  • Service and support by Wheelabrator

Applications

The Wheelabrator pre-blast roll conveyor is ideal for today's structural fabricator. A flexible solution for the surface preparation of a variety of structural shapes prior to fabrication processes.

The Ideal Conveyor Belt Machine For Today’s Structural Fabricator

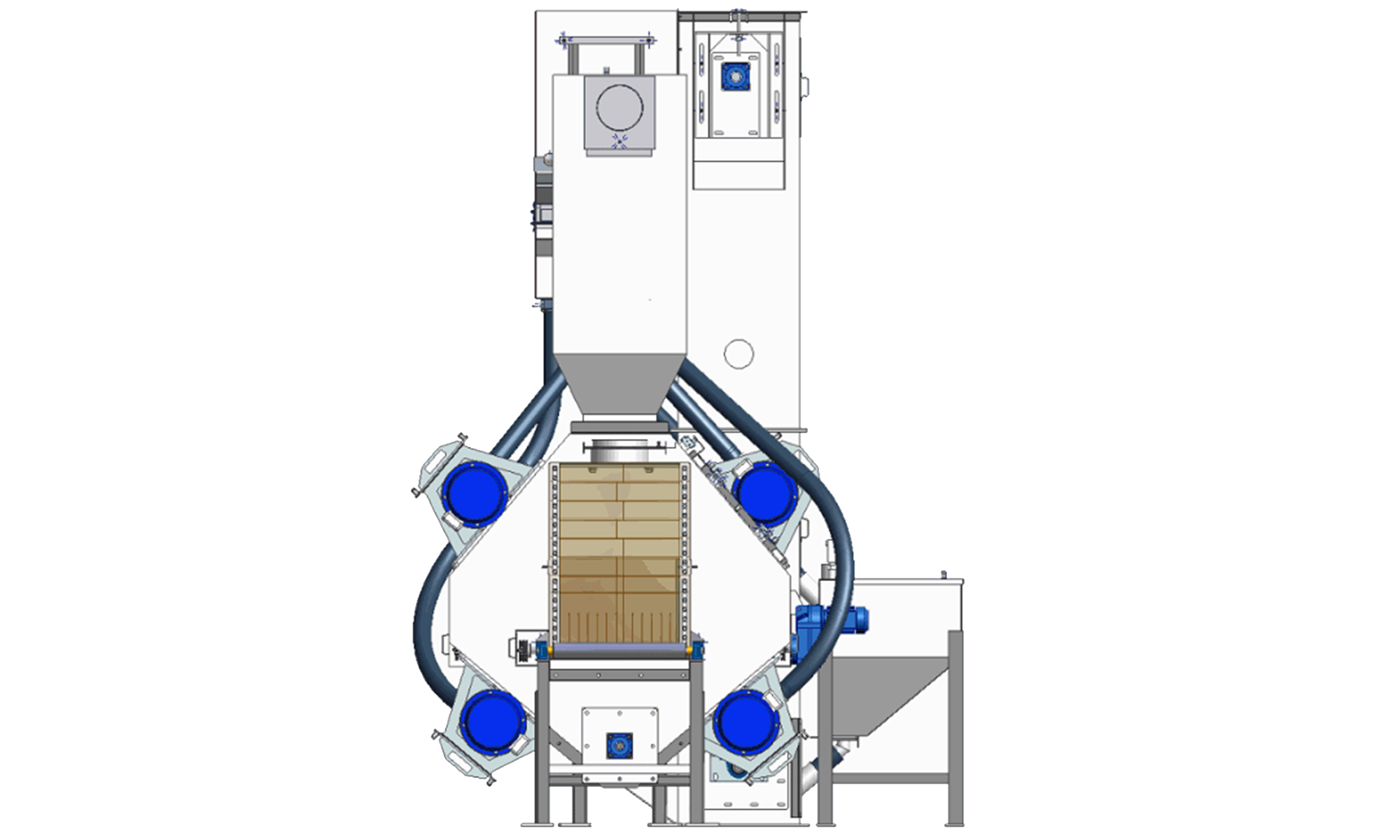

The positioning of the four blast wheel assemblies make this machine a flexible solution for the surface preparation of a variety of structural shapes prior to fabrcation for improved welding, coating and other fabrication processes. There is less wear on cutting tools, including band saw blades and drill bits.

Available Options

  • External entrance and exit roll conveyors
  • Abrasive return spill hoppers
  • High pressure abrasive blow-off
  • Premium cast liner packages
  • Cartridge dust collector
  • Automated load/unload transfer conveyor
  • Enhanced PLC control panel with color touch screen
