MAXMESH® Machine

MAXMESH® Machine

技术:

抛丸

应用:

清理, 去腐蚀, 内部清理, 除锈及去氧化皮

行业:

铸造/锻造

工序:

嵌入式

优点

Fully-automated to provide cost effective and highly productive solutions

Strategic positioning of the blast wheels provides maximum cleaning coverage to your parts loaded across the conveyor width

Designed specifically for economical and productive descaling, surface finishing, de-burring and profiling of parts up to 8-inches in height

Features

  • EZEFIT® blast wheels for high performance & reduced maintenance
  • Blast chamber features a fully welded construction of highly wear resistant steel
  • Manganese mesh belt for short and long parts provides long wear life
  • Blast cabinet design permits provision of up to eight blast wheels for cleaning complex parts with increased productivity
  • Load and unload conveyor extensions sized to meet customers requirements

Applications

  • Cut plates and structual shapes
  • Small fabrications
  • Stampings
  • Forgings
  • Diecastings
  • High production surface finishing
  • Paint fixtures

Cost Effective and High Productive Solutions

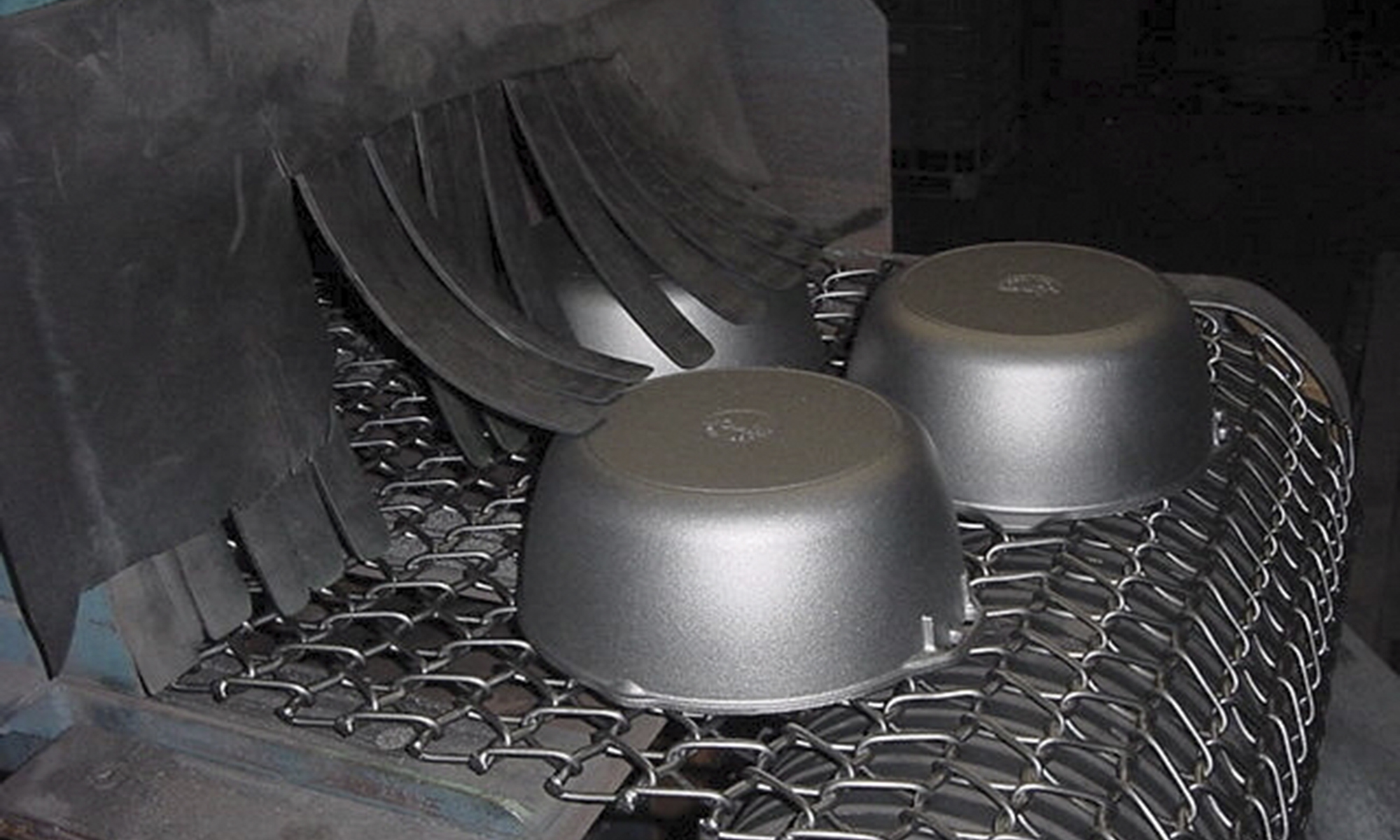

MAXMESH® belt blast machines are fully-automated to provide cost effective and highly productive solutions to meet a variety of surface preparation requirements. The Wheelabrator machine is ideal for treating short, low profile items such as plates or castings that would typically prove difficult to be processed on a conventional roller type conveyor or tumbling barrel style machine. Strategic positioning of the blast wheels provides maximum cleaning coverage to your parts loaded across the conveyor width.

The MAXMESH product line of the shot blast machines are designed specifically for economical and productive descaling, surface finishing, de-burring and profiling of parts up to 8-inches in height.

Available Options

  • Load and unload conveyor extensions sized to meet customers requirements
  • Feed and take-away conveyors
  • High pressure abrasive blow-off assembly
  • Spill hopper
  • Automatic abrasive adder
  • Enhanced PLC controls with color touch screen
  • Wheel hp upgrades
  • Low head room reclaim options
  • Installation by Wheelabrator

Technical Specifications

Model

27

33

48

60

Manganese mesh belt 27” wide 33” wide 48” wide 60” wide
Blast wheels Four (4) 15 hp Four (4) 20 hp Four (4) or eigth (8) 20 hp Four (4) or eight (8) 20 hp
Cabinet Manganese steel cabinet
Platform Access ladder platform
Wiring Factory wiring
