Super III Tumblast

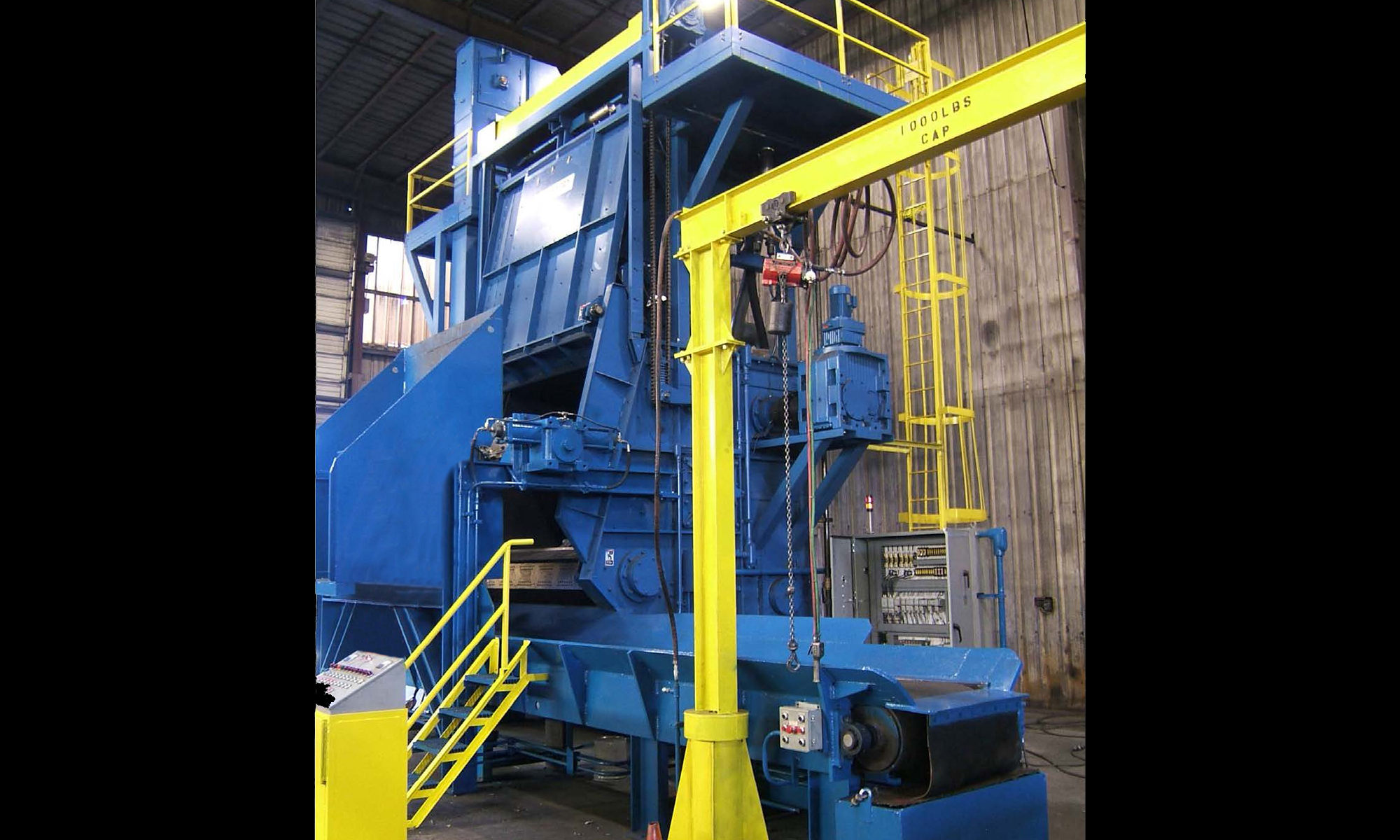

Super III Tumblast Machine

技术:

抛丸

应用:

除锈及去氧化皮, 清理, 去腐蚀, 表面粗糙度

行业:

铸造/锻造

工序:

批量

优点

Wheelabrator units are equipped for faster cleaning cycles and superior durability.

Provides outstanding performance and reliability.

Perform at a high level under very demanding conditions.

Designed for foundry, forge and heat treat requirements.

Features

  • EZEFIT® blast wheels for high performance & reduced maintenance
  • Blast chamber features a fully welded construction of highly wear resistant steel
  • Blast zone protected by Wheelabrator replaceable Long-Lyfe® liners
  • Automatic abrasive reclaim system with airwash abrasive separator for effective utilization of blast media
  • Mill conveyor has heat-treated cast chain links and hardened steel link pins
  • Manganese flights
  • Roller chain operated work door, shaft mounted gear motor drive with brake and safety lock provides consistent power for up & down door mobility
  • Service and support by Wheelabrator

Applications

  • Automotive
  • Iron and steel foundries
  • Heat treat operations
  • Forging operations
  • Remanufacturers and recyclers

Technical Specifications

Model type 22cu. ft.  28cu. ft. 34cu. ft.
Tumblast dimensions
(with single lip separator)
19’-0” L
10’-0” W
26’-6” H
18’-0” L
10’-0” W
23’-0” H
18’-0” L
10’-0” W
23’-0” H
Tumblast dimensions
(with pivot type/cable loader)
19’-0” L
21’-6” W
20’-6” H
18’-0” L
21’-6” W
20’-6” H
18’-0” L
21’-6” W
20’-6” H
Blast wheel assembly
Standard direct drive (hp)
(1) 40-75hp (2) 40hp (2) 50-75hp
Abrasive airwash separator 40” 60” 60”
Mill ConveyorFlights 48” long 60”long 72”long
Abrasive(Initial charge) 4,500lbs 6,000lbs 8,000lbs
