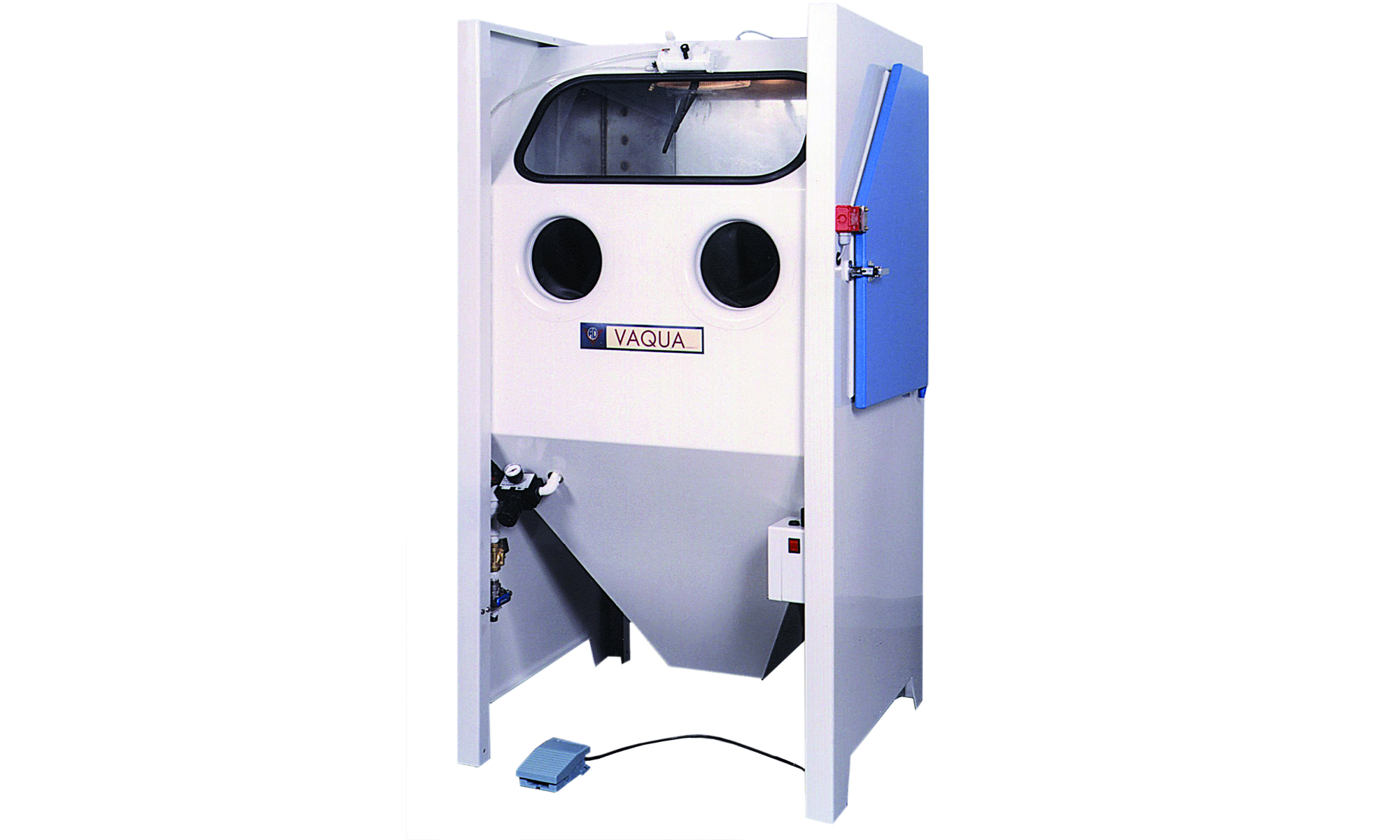

Vaqua Wet Blasting Cabinets

Vaqua 92, 125 & 150 Wetblasting Cabinets

Technology:

Airblast

Application:

Cosmetic Finishing

Industry:

Light/ Medium

Process:

Batch

Key Benefits

High productivity

Long life machine

Blasting and degreasing at the same time

Dust-free, smooth action on fragile part and fine roughness achieved on parts, wet blasting cabinet, wet sandblasting cabinet

Features

  • Low noise levels
  • Robust, stainless steel construction
  • Large viewing window with water spray and wiper
  • Integral turntable for easy component handling
  • Adjustable gun holder
  • Interlocked door
  • Simple hands free pump controls
  • Easy quick change glove system
  • High performance wear resistant pump and process gun
  • Easily removable pump and motor, requires no machine emptying
  • Versatility. The system can be used with a wide range of abrasives, glass beads or soft blast grits
  • The Vaqua 150 machine can be automated
  • Large range of optional extras

Applications

  • Repair and remanufacture
  • Peening
  • Preparation for bonding and plating
  • Cosmetic finishing
  • Nuclear decontamination
  • Mould and die cleaning
  • General component cleaning

The Vaqua Range

The Vaqua wet blast cabinet range has been designed specifically for production applications where a high work output and optimum performance is required. Constructed in stainless steel, the cabinets offer advanced features to ensure maximum cleaning effect with good visibility and ease of use. The Wet Blast process provides component cleaning, degreasing and finishing in one operation. Compared with dry blasting it is less aggressive, does not generate dust, can process components such as titanium without risk of explosion, reduces media consumption and leaves a cleaner, brighter surface finish.



Technical Specifications

Type

Vaqua 92

 Vaqua 125

Vaqua 150

Turntable max. load (kg) 50 250 250
Sump Water capacity (litres) approx. 50 approx. 50 approx. 60
Abrasive media capacity (%) 10-40 10-40 10-40
Electrical supply (kW) 1.5 single phase 1.5 single phase 1.5 single phase
Average Air consumption (m3/min) 0.85 (30 cfm) 1.1 (40 cfm) 1.4 (50 cfm)
