Vacu-Blast Airblast Cabinets

Vacu-Blast Ventus Air Blast Cabinets

Technology:

Airblast

Application:

Cosmetic Finishing, Corrosion Removal, Paint Stripping, Preparation for Painting, Bonding and Plating, Rust and Heat Scale Removal, Surface Texturing, Shot Peening, Cleaning

Industry:

Light/ Medium

Process:

Batch

Key Benefits

High productivity

Long life machine

Large range of pressure from 0.1 bar to 8 bars

Height adjustable

Features

  • Low noise levels
  • High ventilation rate for good visibility
  • Robust construction
  • Large viewing window

Applications

Cosmetic finishing, mould cleaning, corrosion removal, glass etching, paint stripping, preparation for painting, bonding and plating, rust and heat scale removal, surface texturing, shot peening, general, component cleaning, delicate cleaning

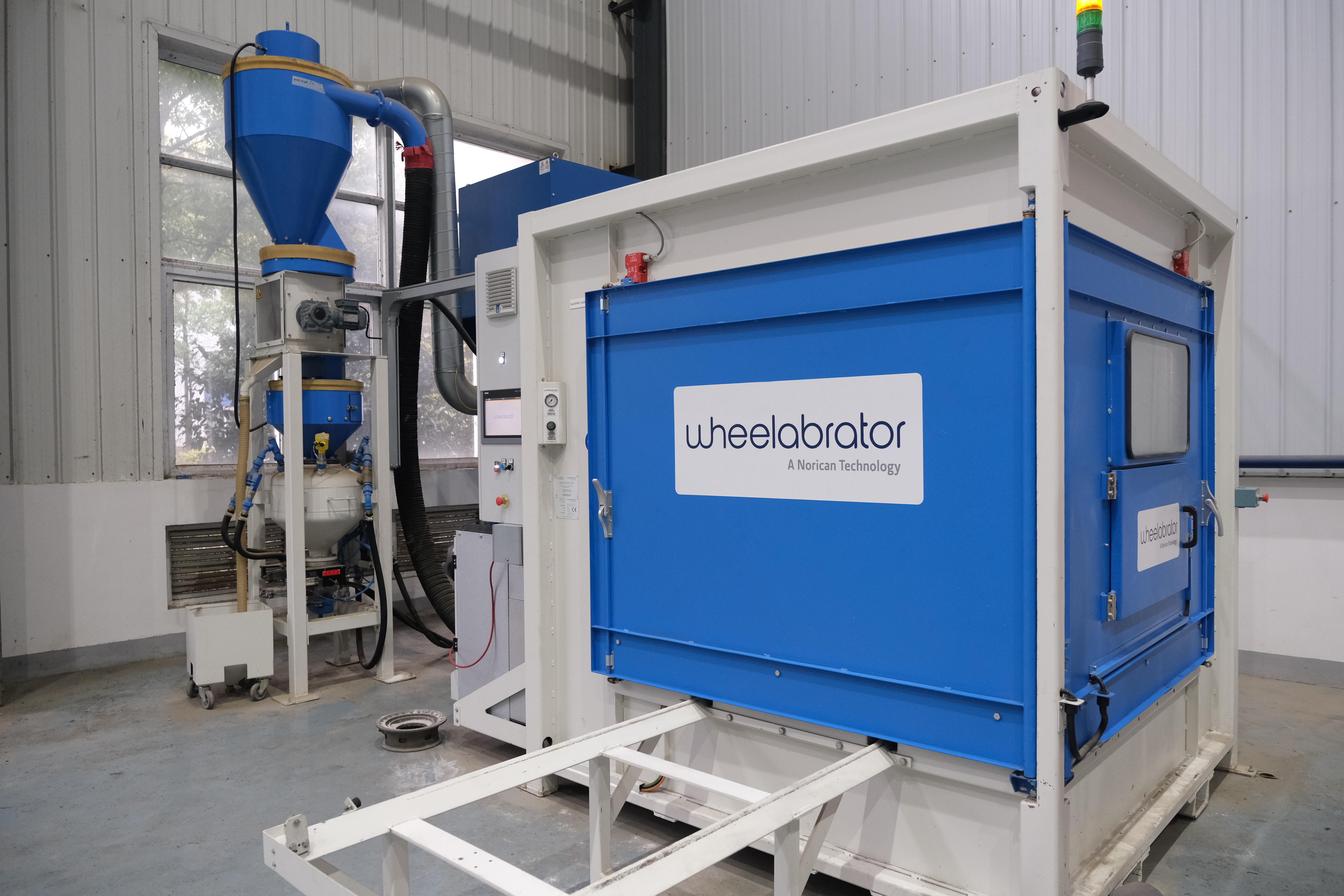

200 PR - robotic automatic peening (blasting) system

A versatile robotic system for cleaning and surface preparation application, the Wheelabrator Ventus 200 PR Robot machine is specifically designed for the surface preparation cleaning for a wide range of different applications such Rust and heat scale removal, paint stripping, surface texturing, preparation for painting, bonding and plating, corrosion removal, shot peening and general component cleaning. Its 6-axis robot interpolated with an indexing position rotary table allow various parts processing from aerospace sector as turbine disks, casings, and blades, or parts of general industries as mould, valve ball, hydraulic distributor…Different versions are configurable, from manual adjustment of blasting parameter, to PLC close loop control regulation of pressure and media flow providing the most efficient process control and performance.

watch Ventus 200 PR video here

Features

  • Capable of blasting or shot-peening a wide range of complex components
  • Maximum component size 1500 mm Ø x 800mm high ,weight: 250 kg
  • ABB robot controller linked with Siemens PLC for full process control
  • Stabilised base frame supporting an accurate turntable and ABB robot to guarantee constant precision
  • Compact cabinet with pitless pneumatic recovery system
  • Two access door allowing easy loading and manual process intervention
  • Elliptical glove ports to suit a wide range of operator sizes thanks to its ergonomics design
  • Anti-static gauntlets
  • Dedicated classification system depending on chosen media with sophisticated cyclone for efficient and adjustable abrasive separation

Optional features

  • Turntable equipped with 4, 6 or 8 numerical satellites
  • Rotary lance unit for bore and slot blasting
  • Quick media change system to handle different meida types and sizes in the same system
  • Offline programming
  • Supervision software including quality reports, maintenance assistant and process stability statistics
  • Vibrating screen to ensure constant media flow and removal of oversize matter
  • Magnetic separator for removal of ferrous contaminants when used with non ferrous abrasive
  • Precision blasting generators with air pressure, shot flow regulation and air flow control

P Pressure Fed & S Suction Fed Air Blast Cabinets

Pressure fed - Designed specifically for production applications where a high intensity blasting process is required.Suction fed - for production applications where a less aggressive surface treatment is required. It offers advanced features to ensure efficient operation and maximum operator comfort. It incorporates an integral reverse jet dust collector to save space and minimise dust emissions.

Range sizes:

92 Enclosure WxDxH: 896 x 796 x 800 mm

Applications:

  • Cosmetic finishing
  • Mould cleaning
  • Corrosion removal
  • Glass etching
  •  Paint stripping
  • Preparation for painting, bonding and plating
  • Rust and heat scale removal







Features:

  • Low noise levels
  • High ventilation rate for good visibility
  • Integrated dust collector giving a small footprint
  • Robust construction
  • Large viewing window
  • Pressure regulation at the operator position for easy adjustment
  • Reverse jet dust collector with convenient clean side filter changing
  • Elliptical glove ports to suit a wide range of operator sizes
  • Internal blow down gun
  • Anti-static gauntlets
  • Adjustable feed valve
  • Interlocked door

Favorite machine in the Aerospace and also the medical industry, where keeping abrasive quality is very important, the Ventus range is versatile enough to allow all types of personalization.

Different types of standard automations are available too. The motorized height adjustment makes small and tall operators comfortable. The adjustable double flux cyclone feeds the nozzle with only good abrasive without the dust and fines to increase productivity.

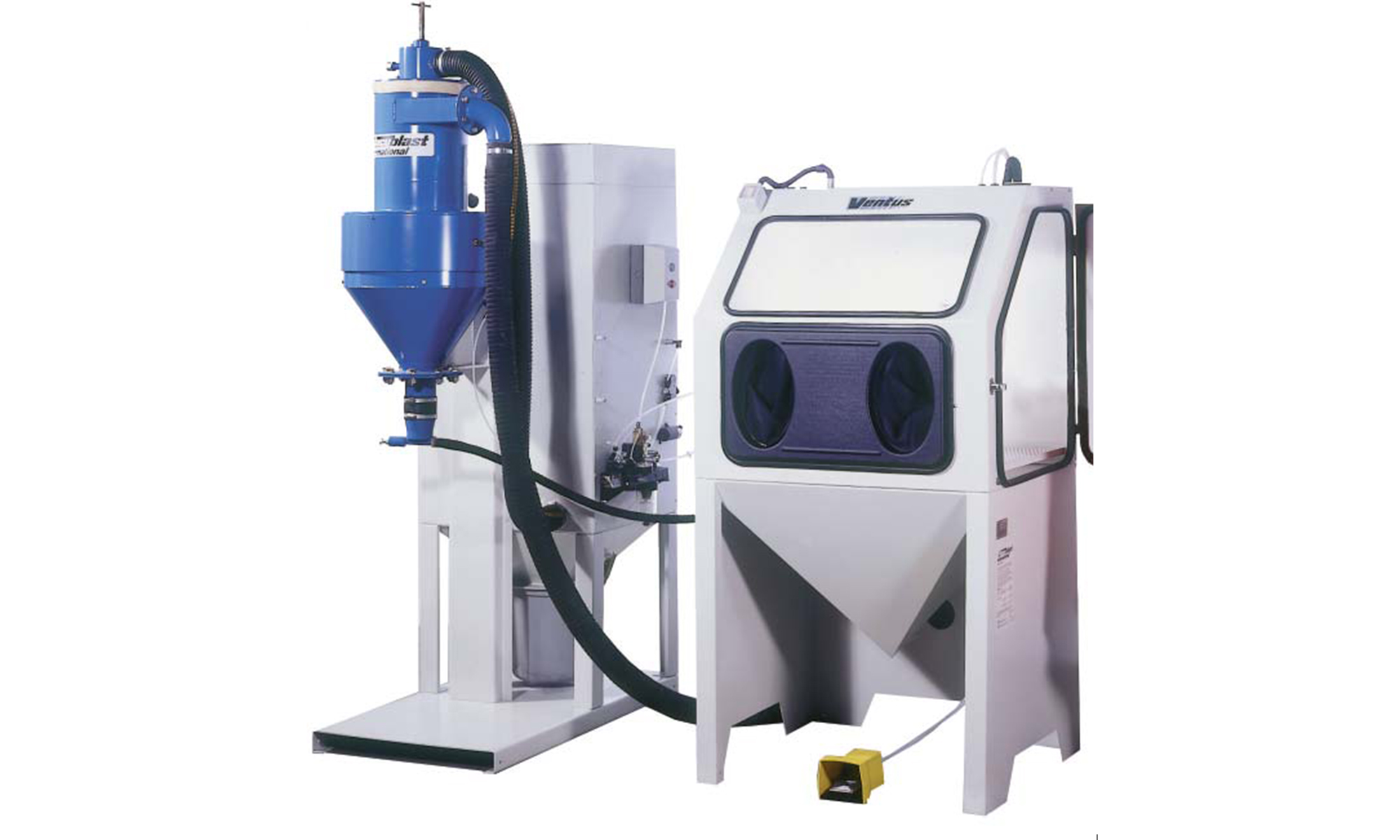

SR Suction Fed & PR Pressure Fed Air Blast Cabinets

Designed specifically for production applications where a high work output is required combined with optimum abrasive quality.It offers advanced features to maximise abrasive integrity and ensure efficient operation using a separate free-standing recovery power pack.

Range Size:

92SR & 92PR Enclosure WxDxH: 896 x 796 x 800 mm
125SR Enclosure WxDxH: 1250 x 1000 x 950 mm
150SR & 150PR Enclosure WxDxH: 1500 x 1340 x 1180 mm

Applications:

  • Rust and heat scale removal
  • Paint stripping
  • Surface texturing
  • Preparation for painting,bonding and plating
  • Corrosion removal
  • Shot peening
  • General component cleaning













Features:

  • Low noise levels
  • Robust construction
  • High ventilation rate for good visibility
  • Large viewing window
  • Free standing blast generator and dust collector
  • Pressure regulation at operator position for easy adjustment
  • Reverse jet dust collector with clean side filter change
  • Elliptical glove ports to suit a wide range of operator sizes
  • Anti-static gauntlets
  • Internal blow down gun
  • Adjustable abrasive feeding
  • Interlocked door
  • Sophisticated cyclone for efficient and adjustable abrasive separation
  • Vibrating screen for removal of oversize debris
  • Magnetic separator for removal of ferrous contaminants when used with non ferrous abrasive
  • Aerated adjustable feed valve for even abrasive feed (PR)

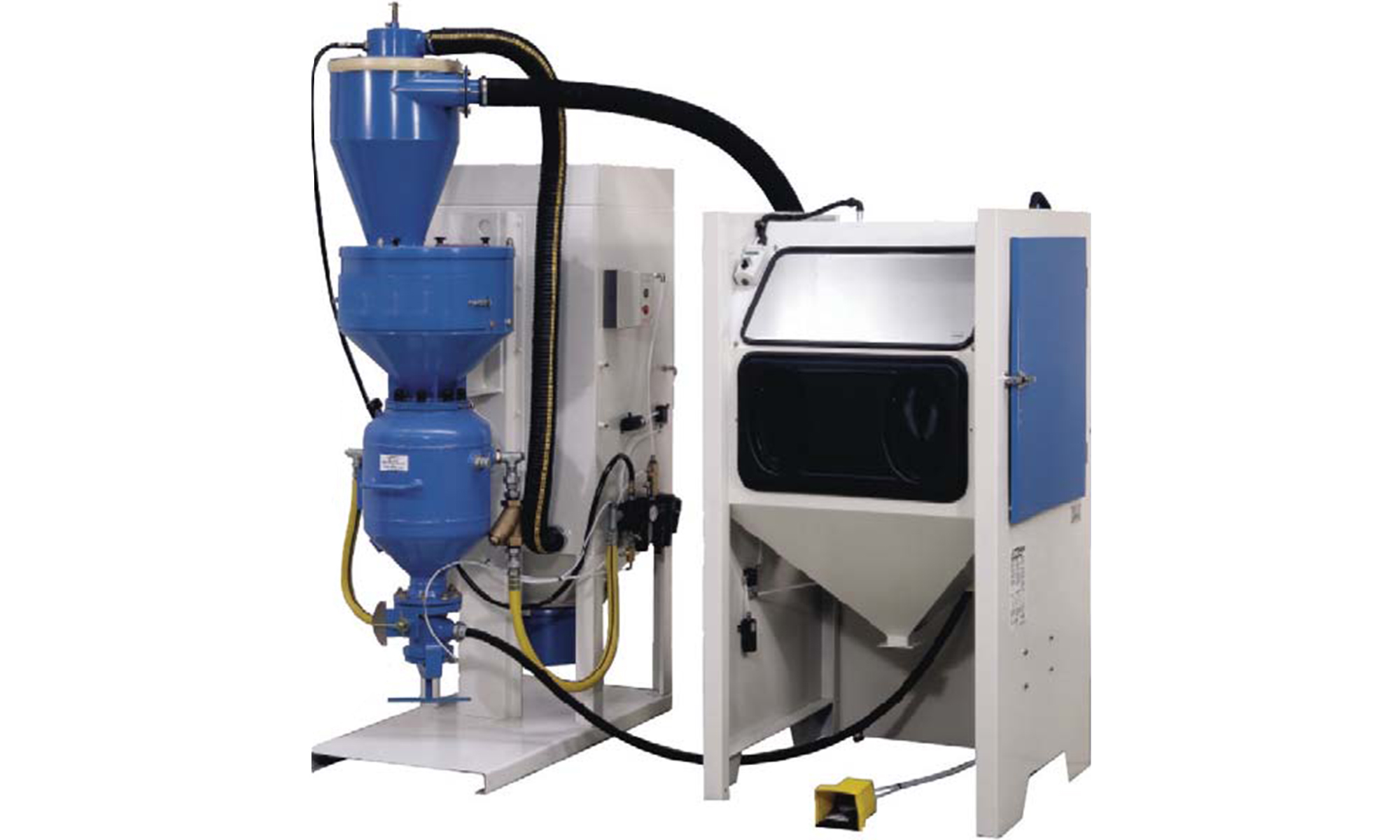

92PMB, 125PMB & 150PMB Pressure Fed Air Blast Cabinet

Designed specifically for plastic media blasting applications where a high work output is required combined with optimum abrasive quality. It offers advanced features to maximise abrasive integrity and ensure efficient operation using a separate free-standing recovery power pack.

Range Size:

92 Enclosure WxDxH: 896 x 796 x 800 mm
125 Enclosure WxDxH: 1250 x 1000 x 950 mm
150 Enclosure WxDxH: 1500 x 1340 x 1180 mm

Applications:

  • Paint stripping
  • Delicate cleaning















Features:

  • Free standing blast generator and dust collector
  • Pressure regulation at the operator position for easy adjustment
  • Reverse jet dust collector with clean side filter change
  • Elliptical glove ports to suit a wide range of operator sizes
  • Internal blow down gun
  • Anti-static gauntlets
  • Aerated adjustable feed valve for superior even abrasive feeding
  • Interlocked door
  • Sophisticated cyclone for efficient and adjustable abrasive separation
  • Vibrating screen for removal of oversize debris
  • Magnetic separator for removal of ferrous contaminants
  • ATEX regulation


Air blast parts and replacements

We provide high quality, long lasting replacement parts. As the largest distributor of replacement parts in the industry we can deliver globally in the shortest timescales to prevent you having to have a large inventory stock on site or breaks in production.

Contact us directly +44 161 928 6388or click the link to get to our contact form.

Place an order via our contact form
