MP 600
System

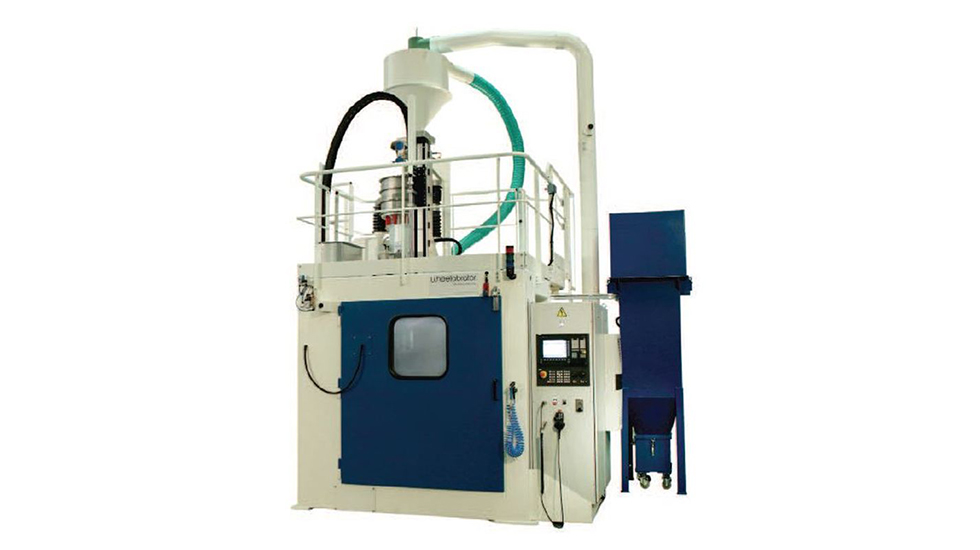

MP 600 Peening System for Aero Engine Components

Technology:

Airblast

Application:

Cleaning, Shot Peening

Key Benefits

State-of-the-art aerospace shot peening

Excellent precision and process control

Excellent reliability

Pitless pneumatic recovery

Features

  • Precision pressure generator with closed loop regulation and control for pressure and media flow
  • Numerical table mounted on a revolving arm for easy loading and unloading
  • 3-axis robot: horizontal stroke 600 mm and vertical stroke up to 1500 mm, movement +/- 135°
  • Supervision software package, including peening process control and maintenance tools
  • System and process control compliant with latest standards (European)

Applications

The MP 600 range can process small aero-engine components to improve or restore their resistance to fatigue.

These include turbine discs, fan discs, compressor rotor discs,spools, shafts and blades made from steel, Inconel, aluminium or titanium alloys.

Fulfilling the Most Demanding Specifications in Terms of Precision and Process Control

The MP range of shot peening machines are designed for aerospace and automotive applications, and are available in a wide range of sizes.

It is fulfilling the most demanding specifications in terms of precision and process control.

The MP 600 machine is the smallest version of the MP Range for peening and blasting processes

Representing the state-of-the-art in aerospace shot peening, the MP 600 range can process some small aero-engine components to improve or restore their resistance to fatigue.

These include turbine discs, fan discs, compressor rotor discs, spools, shafts and blades made from steel, Inconel, aluminium or titanium alloys.





Optional Features

  • Operator manual blasting station located on the front door
  • Second nozzle manipulator (1 axis)
  • Sound insulation / 75 dBA
  • Rotary lance unit for bore and slot peening
  • Abrasive flow calibration unit CF 36 type
  • Integrated 250 kg electrical hoist for component loading
