Compact Blast Machine

Compact Blast Machine

Technology:

Wheelblast

Application:

Cleaning, Corrosion Removal, Cosmetic Finishing, Deburring, Deflashing, Rust and Heat Scale Removal, Shot Peening

Industry:

Light/ Medium

Process:

Batch

Key Benefits

Super compact, fully functional blast machine

Easy to install in the shortest of time

Oscillating workpiece movement for improved cycle times

Easy to integrate in existing product lines

Features

  • 2 super efficient TITAN blast wheels
  • Easy to integrate in existing product lines
  • Ergonomic load height

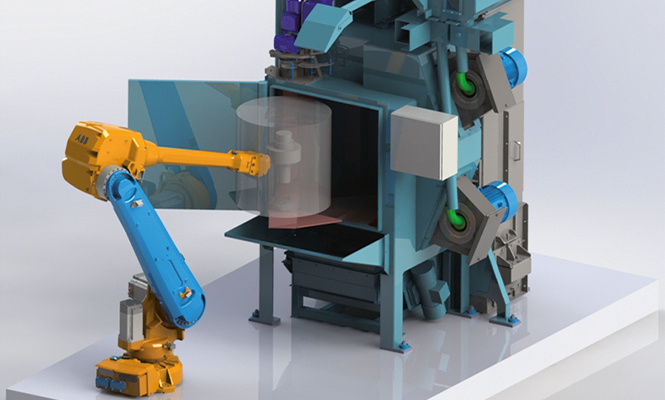

  • Manual or automated loading/unloading
  • Automated PLC control
  • Abrasive cleaning in the base of the machine
  • Independent installation without foundation pit
  • Overall machine height only 3.2 m
  • Floor space required: 2 x 2 m

Application

  • Cleaning
  • Corrosion removal
  • Deburring
  • Deflashing
  • Rust and Heat Scale Removal
  • Cosmetic finishing
  • Shot Peening

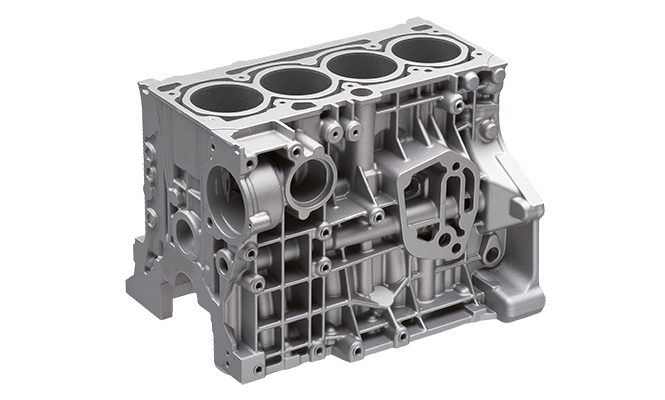

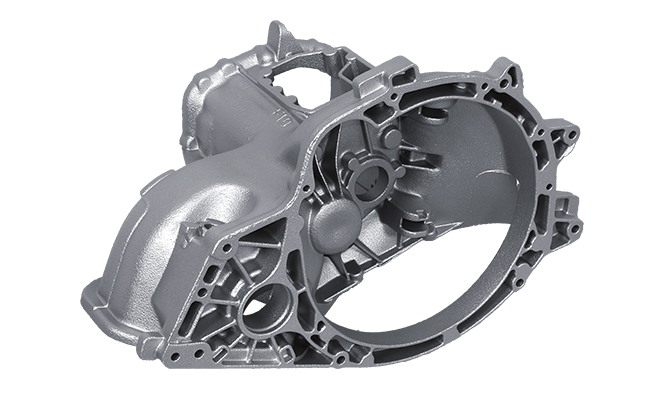

Specifically Designed For Aluminium Parts

The result is unique: a super compact blast machine, that would stand-alone (in an island), directly within or by the casting production line, suitable for a wide range of (automotive) parts, manual or automatic loading and operation available. You will reap the benefits from the first day it’s installed.

Technical Specifications

Max. workpiece height (mm) 600
Max. rotation diameter (mm) 600
Max. workpiece weight (kg)
40
Blast wheel type TITAN 14.3
Speed (rpm) 1500 and 3200
Power per blast wheel (kW) 7.5
Throwing speed (m/s) ca. 60
 Load height (mm) 950
 Floor space required (m)  2 x 2 (without foundation pit)



Original OEM parts

We provide high quality, long lasting replacement parts. As the largest distributor of replacement parts in the industry we can deliver globally in the shortest timescales to prevent you having to have a large inventory stock on site or breaks in production.

Contact us directly +44 161 928 6388 or click the link to get to our contact form.

Place an order via our contact form
