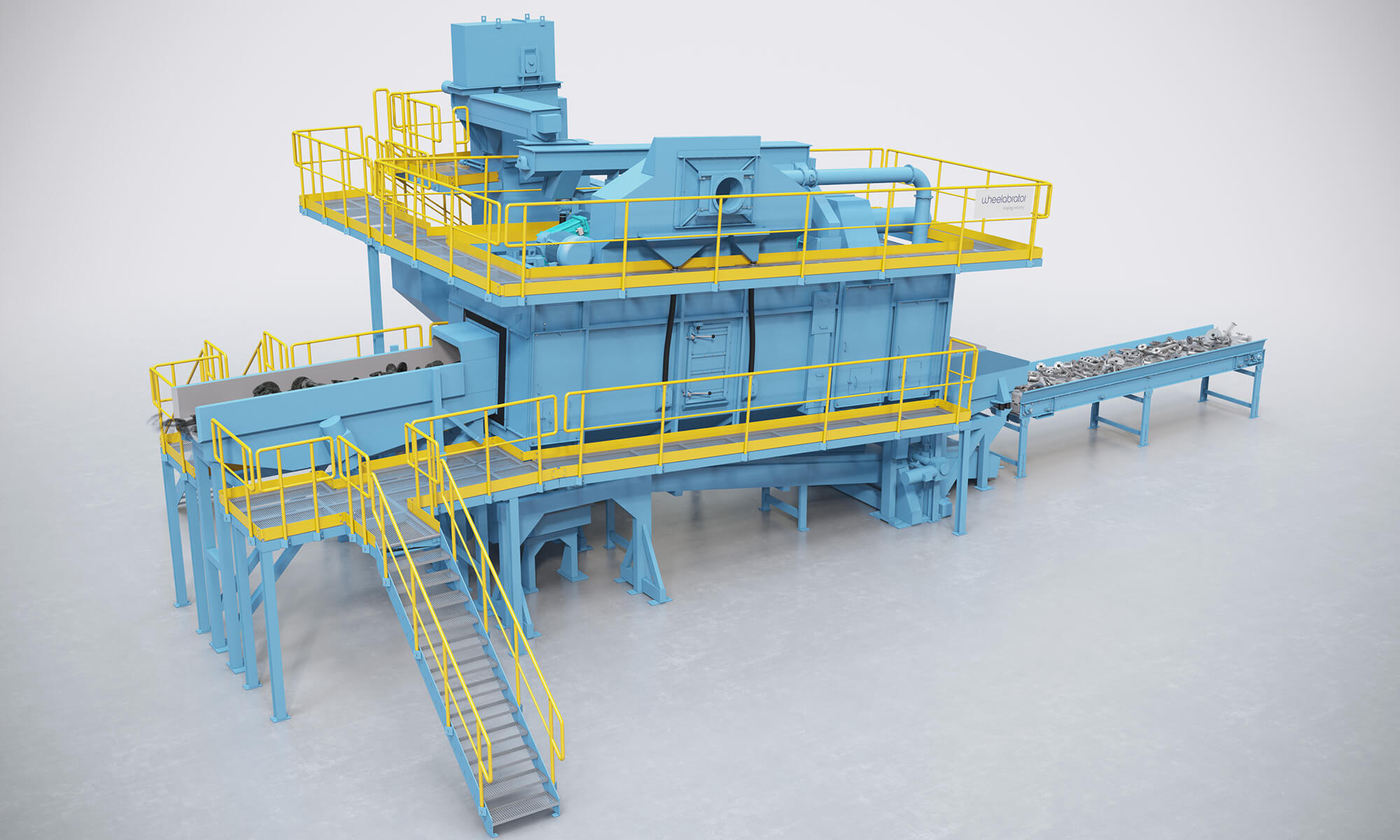

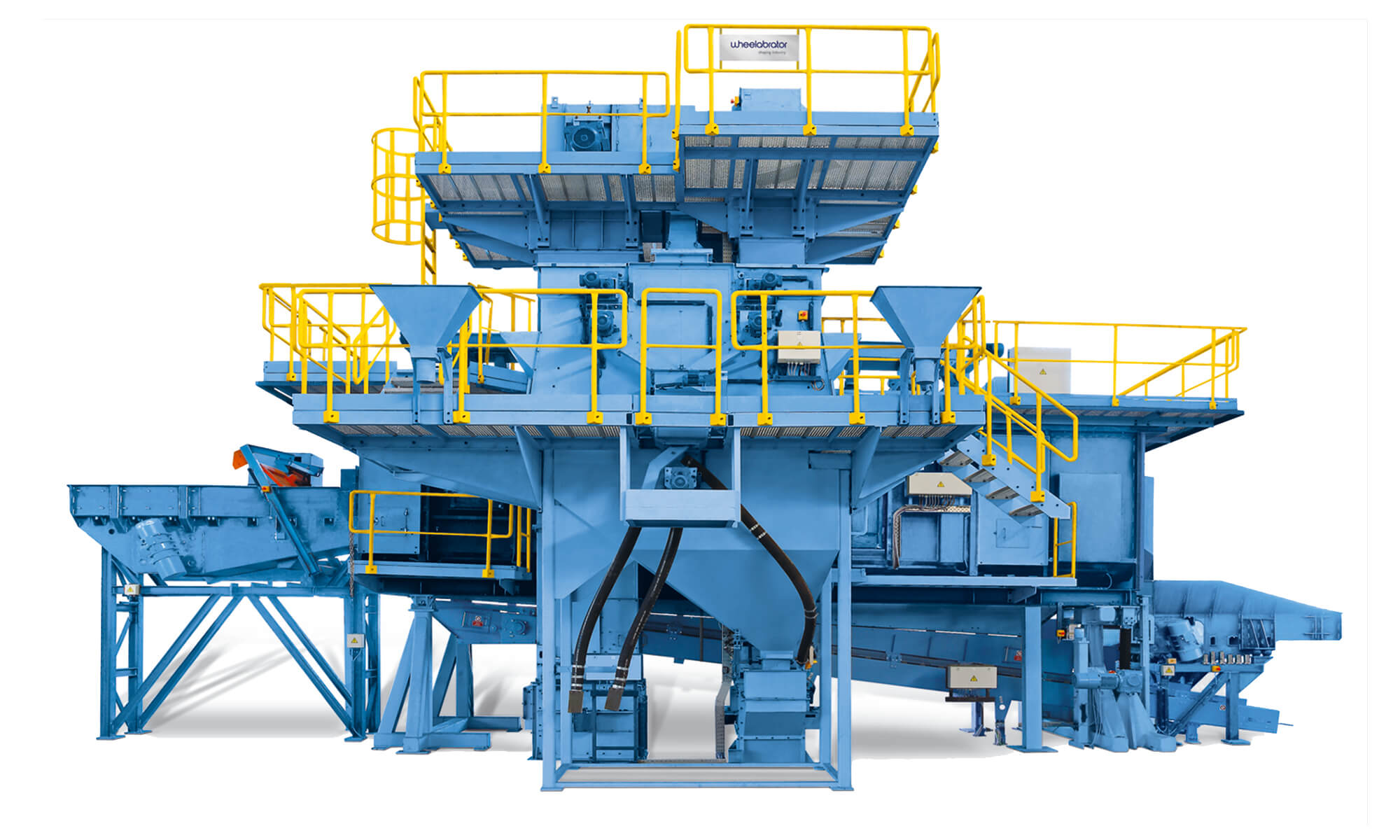

DT Continuous Through-Feed Tumblast Machine

DT Through-feed Blast Cleaning Machine

Technology:

Wheelblast

Application:

Cleaning, Corrosion Removal, Deburring, Deflashing, Rust and Heat Scale Removal

Industry:

Foundry/ Forge

Process:

Continuous

Key Benefits

A fully automatic production flow from the moulding line to the finishing department

Clearly arranged production processes, improved production consistency

Short transport distances without intermediate stocking

Reduced operating costs, as the blast cleaning process can be integrated in an automatic production line

Features

  • Minimal floor space requirement
  • Little or no need for manual handling of the pre-blast workpiece
  • High cleaning capacity short blasting times
  • Easy maintenance set up
  • Easy integration into existing production lines
  • Leading technology, outstanding experience

Applications

  • Removing sand and cores from castings
  • Descaling castings and forgings
  • Handling mixed and single products runs
  • Cleaning cluster

Leading Technology Today

Automatic manufacturing processes require highly flexible production systems to be able to cope with changing production requirements. Flexible systems can quickly adapt to changes in production rates, lot size, finishing techniques and market demands. The through-feed blast cleaning process offers a number of distinct advantages and ensures efficient and cost effective blast cleaning. Continuous shot blast machines automate production sequences and improve the work environment.

Integrated, Fully Automatic Production from Moulding to Clean Castings

Automatic, Continuous and Dust-free Blast Cleaning

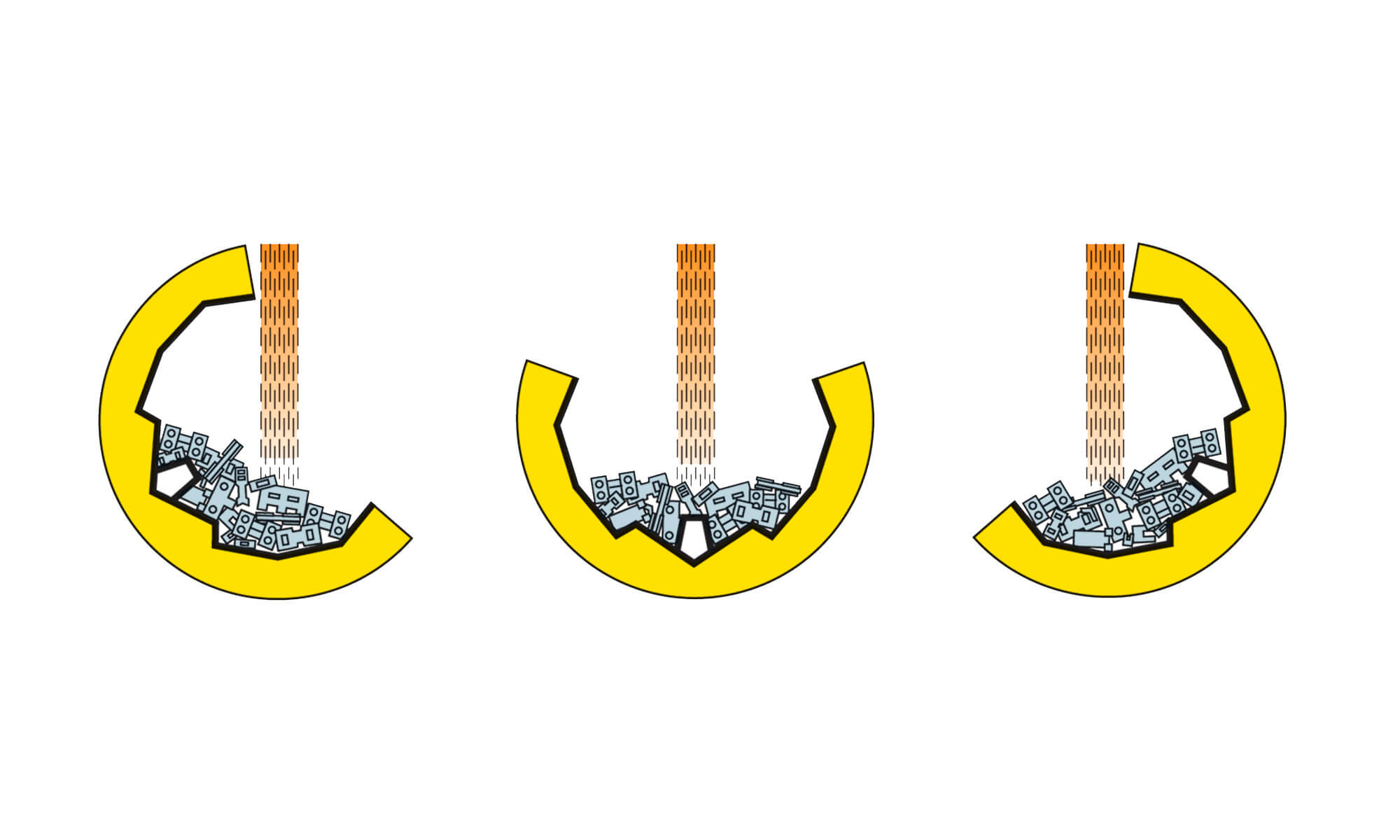

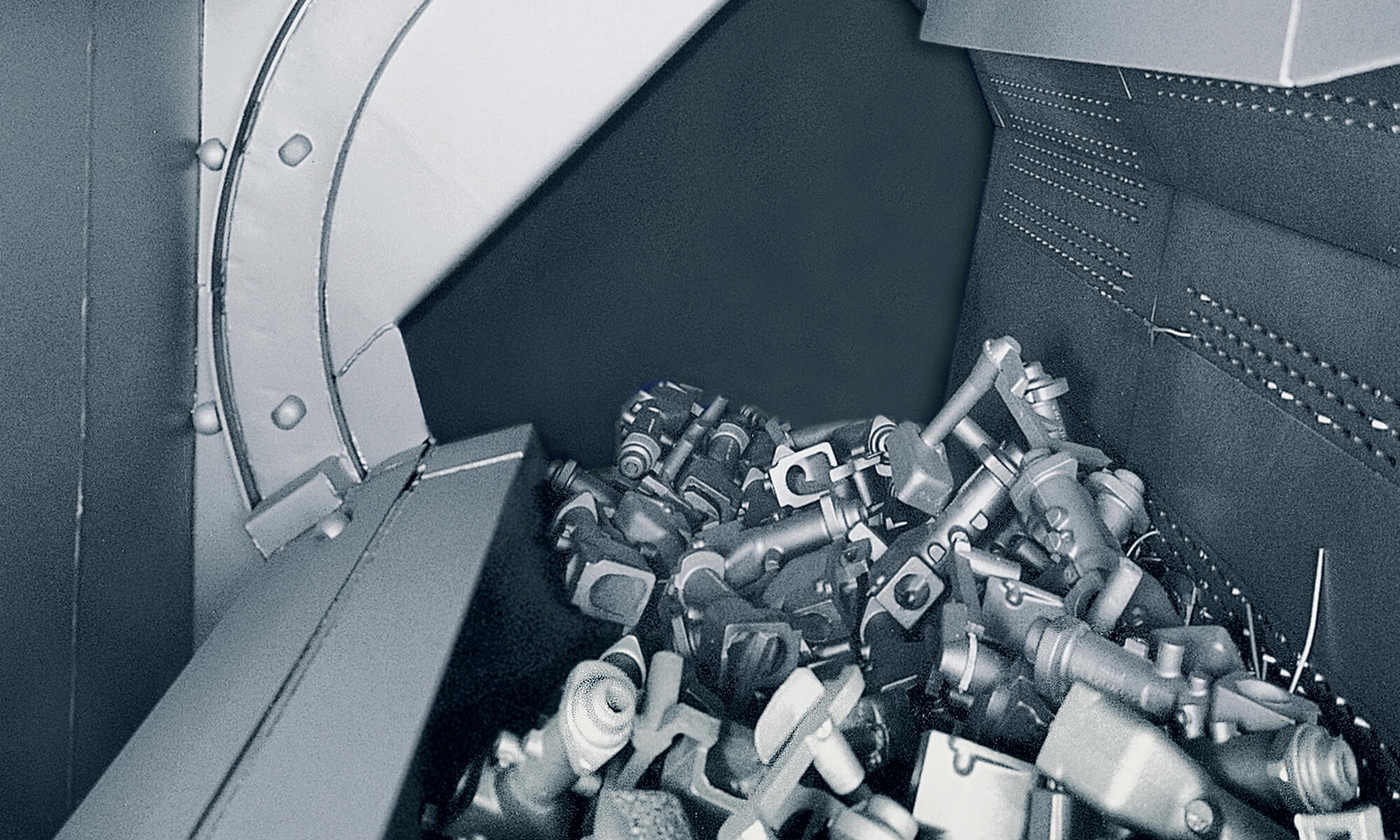

The polygon shaped trough rocks back and forth to gently tumble the workpieces. The frequency of the rocking motion of the trough and the abrasive supply to the blast wheels are controlled based on pre-programmed parameters depending on the flow rate and volume of parts. This ensures optimum blast cleaning results and minimum wear, even when the flow-rate of parts is irregular. The high power abrasive streams - aimed at parts from above - reach, and thoroughly clean all surfaces and interior areas.

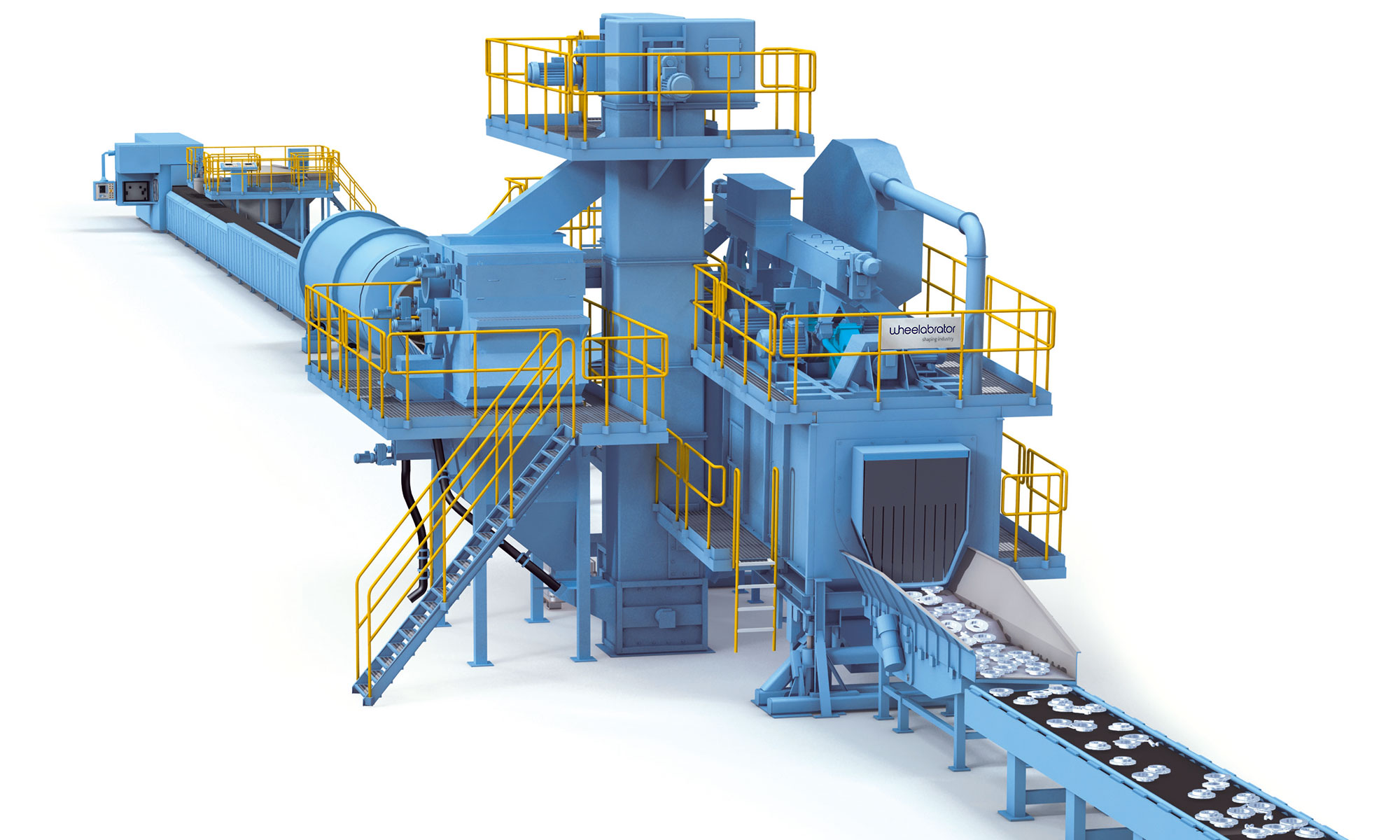

Integration Into the Production Line

The unique design makes it easy to integrate DT blast cleaning machines into production lines.

  • Integrated production provides the following advantages:
  • Entirely automatic, continuous production flow
  • Integrated cooling of castings and sand
  • Recovery of moulding and core sand during shot blasting by means of magnetic separator
  • Minimal pollution through complete control and capture of dust throughout the production line right from punchout

Get the Best out of Your Production

A lighter, entry-level version of the established heavy-duty DT rocker barrel tumblast concept is available. The DT-11-350 was designed specifically for the needs of smaller foundries, producing smaller castings in smaller runs. For foundries looking to upgrade to the new DISAMATIC C3 vertical moulding machine, the new DT offers an affordable continuous wheel blast solution to match.

DT Rocker Barrel Tumblast Machine Animation

Our Global Blast Wheel Portfolio - Atlas | EZX | Titan

Blast wheels determine the performance of your shot blast machine like no other component. Your shot blast machine’s performance depends on the quality of its blast wheel. Our global portfolio delivers cutting-edge technology tailored to your needs.

All our wheels share the same Wheelabrator DNA:
• Superior blasting performance
• Unmatched durability
• Designed for easy maintenance
• Optimized for efficiency and cost savings
• Continuously improved wear parts for extended life

Our experts will advise you on the best wheel for your needs.



Technical Specifications

Type DT-11-350

DT-14-450
DT-14-650
DT-14-850
DT-14-1050

DT-17-650
DT-17-850

DT-20-650
DT-20-850
Max. workpiece diagonal (mm) 400  850  980 1150
Max. workpiece weight (kg)
 30 150 150 150
Throughput rate (t/h) 2-5  8-25  15-33  15-38
Number of blast wheels 3  4-10  6-10 6-10
Power per blast wheel (kW) 45  37-45  37-45 37-45



Original OEM parts

We provide high quality, long lasting replacement parts. As the largest distributor of replacement parts in the industry we can deliver globally in the shortest timescales to prevent you having to have a large inventory stock on site or breaks in production.
