MPR 2200
Robotic System

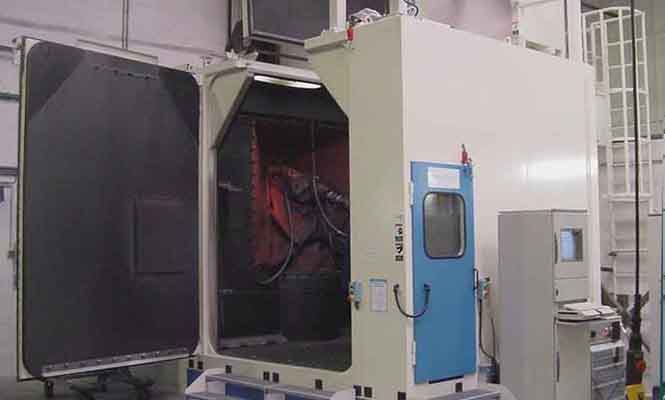

MPR 2200 Robotic Peening System

Technology:

Airblast

Application:

Shot Peening

Key Benefits

Capable of shot peening with the two robots simultaneously for complex component geometry

Part Recognition System allows automatic peening process of mixed part references

Guaranteed process repeatability

The most efficient process control and supervision software provides quality reports and process performance data

Features

  • Capable of shot peening a wide range of complex aeronautic and gas turbine components
  • Maximum component size 2200mm Ø x 2500mm
  • Maximum component weight: 500-10 000 kg
  • Stabilised base frame supporting an accurate precision turntable and ABB robot to guarantee constant precision
  • Large double wall cabinet with pitless pneumatic recovery system
  • Large access door and motorised roof flap allowing easy loading
  • Operator door on cabinet side
  • Precision peening generators with air pressure, shot flow regulation and air flow control
  • Supervision software including quality reports, maintenance assistant and process stability statistics

Applications

For the aeronautic and gas turbine industries.

  • Turbine discs
  • Compressors shafts
  • Landing gears

Robot Satellite Table Machine with Complete Process Reliability

A versatile robotic peening system, the Wheelabrator MPR 2200 machine is specifically designed for the aeronautic and gas turbine industries. Meeting the highest industry
specifications, the MPR 2200 machine is suitable for a wide range of complex applications such as turbine discs, shafts, and landing gear.

The standard version includes the most efficient process control and supervision software, providing quality reports and process performance data.



Optional Features

  • Optional wall side NC driven lance before peening landing gears
  • Precision NC tilting table enabling to reach difficult areas such as engine drums
  • Horizontal spindle with adjustable counter head for long components
  • Sound insulation to 75 dBA
  • Rotary lance unit for bore and slot peening
  • Quick media change system to handle different shot sizes and hardness in the same system
