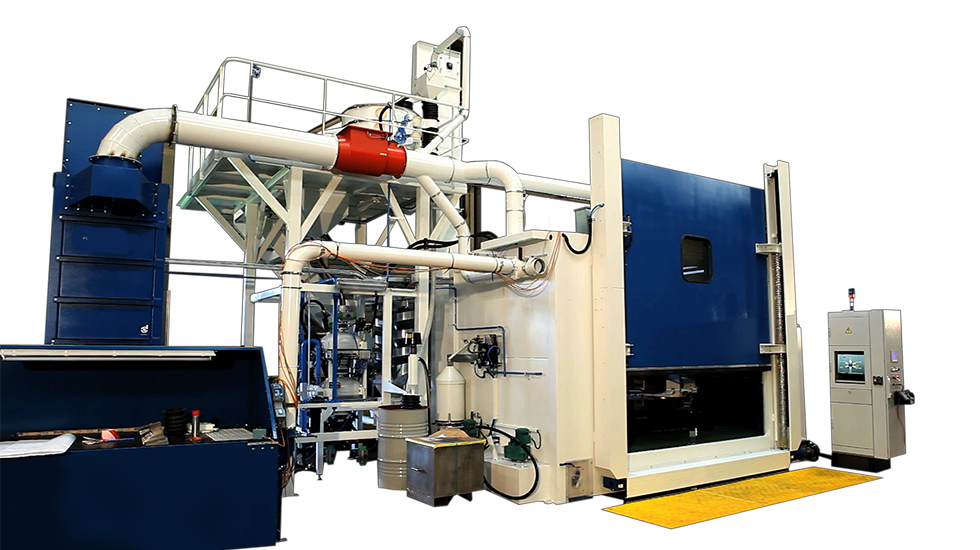

MP2R 1500 Robotic Peening System

MP2R 1500 Robotic Shot Peening System

Technology:

Airblast

Application:

Shot Peening

Key Benefits

Capable of shot peening with the two robots simultaneously for complex component geometry

Part Recognition System allows automatic peening process of mixed part references

Guaranteed process repeatability

The most efficient process control and supervision software provides quality reports and process performance data

Features

  • Part recognition system allowing automatic peening process of mixed part references
  • Capable of shot-peening with the two robots simultaneously to save component geometry
  • Maximum component size 1500 mm Ø x 1000mm
  • Maximum component weight: 500 kg
  • Double wall cabinet with pitless pneumatic recovery system

Applications

Aeronautic and gas turbine applications:

shot peening of turbine discs, shafts, and fan blades.

Two-Robot Satellite Table Machine with Complete Process Reliability

A versatile robotic peening system, the Wheelabrator MPR 1500 machine is specifically designed for the aeronautic and gas turbine industries. Meeting the highest industry
specifications, the MPR 1500 machine is suitable for a wide range of complex applications such as turbine discs, shafts, and blades.

The standard version includes the most efficient process control and supervision software, providing quality reports and process performance data.

Optional Features

  • Vertical sliding door
  • Turntable equipped with 4, 6 or 8 numerical satellites
  • Nozzle stand with localisation and detection
  • Rotary lance unit for bore and slot peening
  • Sound insulation to 75 dBA
  • Quick media change system to handle different shot sizes and hardness in the same system
  • Off line programming
