MPF 20000 Aircraft Wing Peening

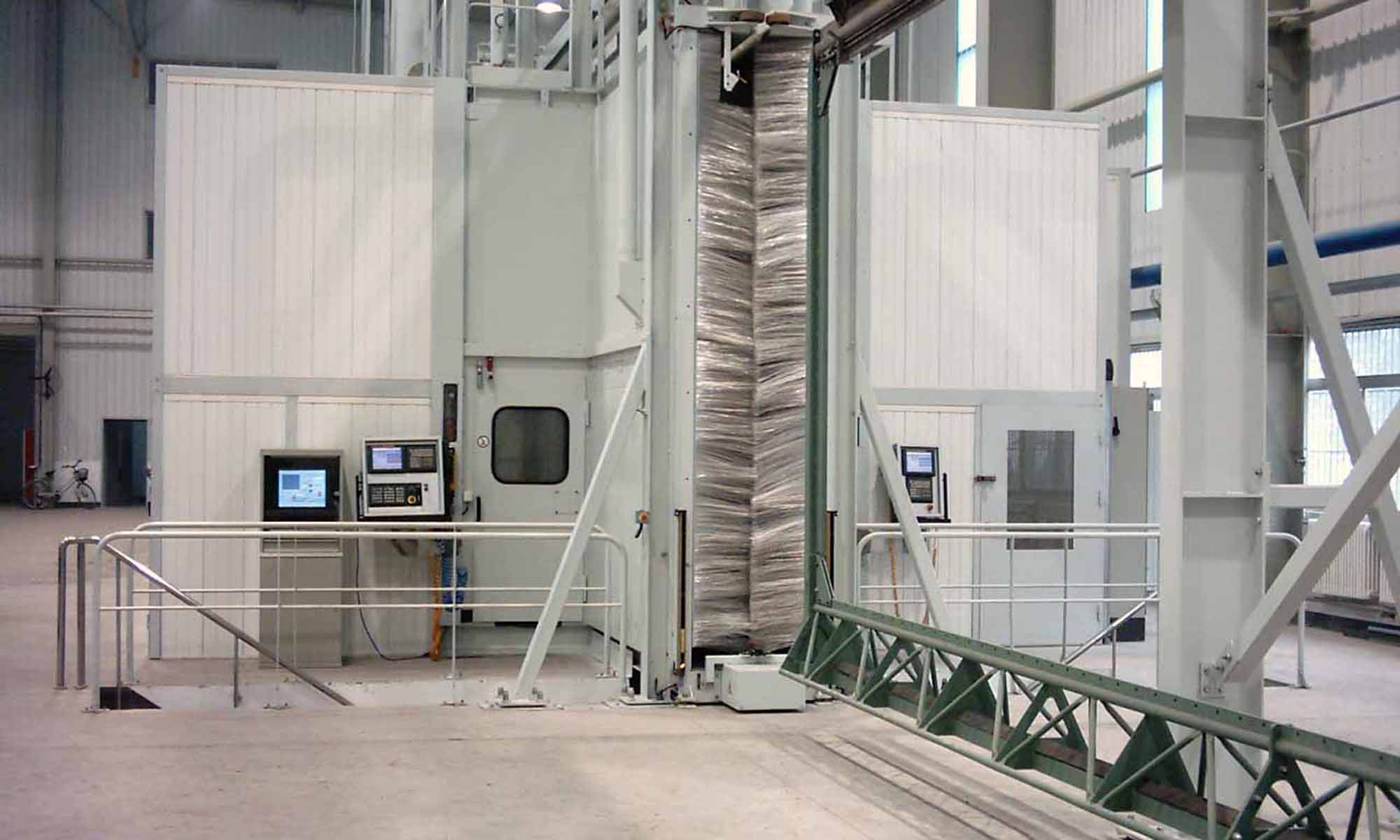

MPF 20000 Aircraft Wing Peening and Forming Machine

Technology:

Airblast

Application:

Shot Peening

Key Benefits

High precision

High flexibility

Wide range of controlled peening power

No corrective peening needed in most cases

Features

  • Max component size: 20000 mm length x 2500 mm width, weight 2000 kg
  • 2 groups of symmetric 4-axis robots, each handling 6 pressure nozzles
  • Symmetrical synchronization of the two robots is possible for saturation peening
  • One accurate NC overhead conveyor, with removable fixturing frame (electrical hoists on board) and component location recognition

Applications

Aerospace wingskin saturation shot peening and shot peen forming

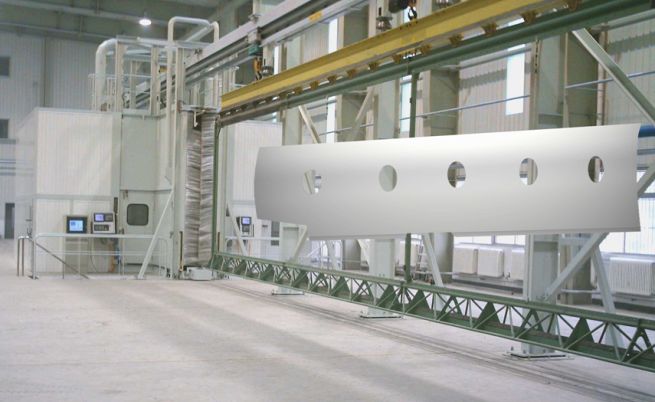

The Ultimate Solution for Aerospace Wingskin Saturation Shot Peening and Peen Forming

The CNC system high precision and flexibility, combined with a wide range of controlled peening power, allow for complex wing panel forming in a fully automatic mode without corrective peening in most cases. Representing the state-of-the-art in peen forming technology, this 9-NC axis machine simplifies the peening process due to its supervision software.

More Features

  • Vision system with component position scanning camera and optional 3D measurement system
  • 2 high precision generators with closed-loop air pressure and shot flow regulations, delivering up to 240 kg/min
  • Recovery system with classification devices for 3 media sizes. Possibility to use steel balls up to 3.5 mm
  • Large shot peening chamber made in strong construction, with easy access, and double lining for noise absorption
  • Inlet and outlet passing through vestibules with retractable tightness brush and curtains for easy access and maintenance
  • CNC control system: Fanuc 16i with double operator station and pendant
  • Supervision software package including shot peening process tools, and production and maintenance utilities
  • Predictive deformation analysis and special peen forming training available
  • System and process control compliant with DMP 28, MIL S 1365 and AMS 2432
