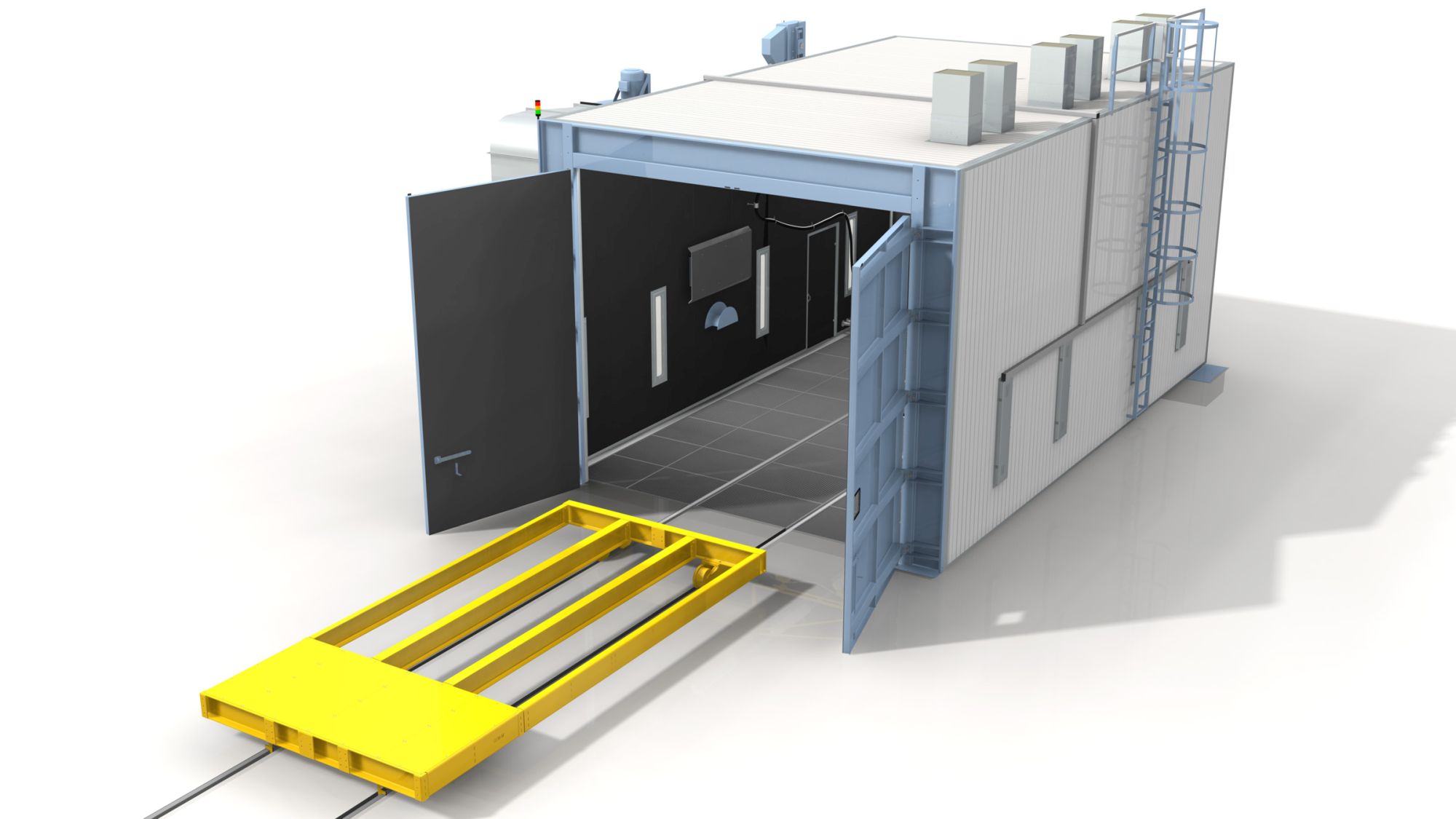

Standard Blastrooms

for all industries

The Principle:
Install, Connect, Blast

Standard blastrooms are compact, robust and economical, and are suitable for a wide range of applications and abrasive media.

The integral air filtration and dust collection system (incorporated as standard) allows the blastroom to be installed without the need for further ducting.

The main feature of an air blastroom is that the operator is inside the room during the blasting process. A protective suit and a helmet protect the operator from abrasive impact, and a fresh air supply provides sufficient ventilation through the blaster‘s helmet.

The Options

Blastroom

  • Insulated panels with 5 mm rubber lining
  • 2-winged swing door
  • Compact fluorescent lamps in the upper room corners

Abrasive Transport

  • Full floor mechanic transport system
  • 250 kg gratings load
  • Bucket elevator

Abrasive Reclamation

  • 3 stage wind sifter VIBRO-Clean 450
  • 1000 l storage silo#

Blast Technique

  • 200 l blast pressure pot
  • Dust free media refilling
  • Operator’s protective equipment
  • Compressed air purifier

Nozzle Movement

  • Manually by the operator

Workpiece Handling

  • Customer provided

Filter Unit

  • Self cleaning cartridge filter units with reverse pulse technology
  • Safety filter

 Electric Control

  • Hanger type switch box
  • Electro project:
    • Switching diagram
    • Cable duct scheme
    • Electric component list and drawing

Options

  • Electric roller door
  • Service/escape door
  • Side wall illumination
  • Gratings load 2000 kg
  • Magnetic separation unit
  • Rail track inside the blastroom
  • Rail-bound transport car
  • Pivoting arm for blast hose movement
  • Safety filter
  • Exhaust air ducting
  • Electric installation material
  • Equipment for an additional blaster
